What is a Diaphragm Compressor?

In the diverse world of industrial gas compression, various technologies serve specific needs. Among the most specialized and reliable is the diaphragm compressor. This article provides a clear, informative look at what this technology is, how it works, its key advantages, and where it excels.

Understanding the Core Principle

At its heart, a diaphragm compressor is a positive displacement compressor. Its defining feature is a flexible diaphragm (or set of diaphragms), typically made of multiple layers of high-strength metal or advanced composite materials. This diaphragm acts as a dynamic barrier between the process gas being compressed and the hydraulic oil that provides the driving force.

Here’s a simplified step-by-step of its operation:

1. Suction Stroke: As the crankshaft drives the piston in the hydraulic oil chamber, the oil pressure decreases. This causes the diaphragm to flex inward, creating a vacuum in the gas chamber. The inlet valve opens, drawing gas into the chamber.
2. Compression Stroke: The piston reverses direction, pressurizing the hydraulic oil. This oil pressure uniformly pushes the diaphragm outward, compressing the gas trapped in the chamber against its head.
3. Discharge Stroke: Once the gas pressure exceeds the discharge line pressure, the outlet valve opens, and the compressed gas is forced out of the chamber.
4. Return: The cycle repeats with precise, reciprocating motion.

The diaphragm’s hermetic sealing is the key to this technology’s unique benefits.

Key Characteristics and Advantages

The unique design of a diaphragm compressor offers several critical advantages, making it indispensable for specific applications:

• 100% Oil-Free and Contaminant-Free Compression: The process gas is completely isolated from the hydraulic oil and the moving parts of the drive system. This guarantees the absolute purity of the compressed gas, with zero risk of lubrication contamination.
• Exceptional Leak-Tight Integrity: The metal diaphragm seal provides a hermetic barrier, virtually eliminating external leakage of the process gas. This is crucial for handling expensive, toxic, explosive, or radioactive gases safely and economically.
• High-Pressure Capability: Diaphragm compressors are renowned for achieving very high discharge pressures (often reaching several hundred or even thousands of bar) in a compact design, making them ideal for applications like gas charging, cylinder filling, and high-pressure synthesis.
• Reliability and Low Maintenance: With the gas contained within a small, sealed chamber and valve assembly, there is minimal wear and tear on critical components from the gas itself. This often leads to longer service intervals and high operational reliability.

Primary Applications

Given its strengths, the diaphragm compressor is the technology of choice for industries where gas purity, safety, and high pressure are non-negotiable:

• Hydrogen Energy: For hydrogen refueling stations (HRS), fuel cell testing, and high-purity hydrogen recirculation.
• Specialty & Electronic Gases: Handling semiconductor-grade gases (e.g., silane, arsine), dopants, and other ultra-high-purity specialty gases.
• Chemical & Petrochemical: Reliable compression of aggressive, toxic, or sensitive process gases.
• CNG/LNG: Used in vapor recovery and high-pressure boosting.
• Laboratory & Analysis: Providing clean, reliable compression for research and analytical instruments.

Xuzhou Huayan: Expertise in Diaphragm Compression Technology

With over 40 years of experience in designing and manufacturing precision compressors, Xuzhou Huayan Gas Equipment Co., Ltd. has developed deep expertise in diaphragm compressor technology. We understand the stringent demands of industries that rely on this equipment.

Our diaphragm compressors are built on a foundation of core strengths:

• Proven, Robust Design: Leveraging decades of engineering know-how, we build durable and reliable machines capable of continuous operation under demanding conditions.

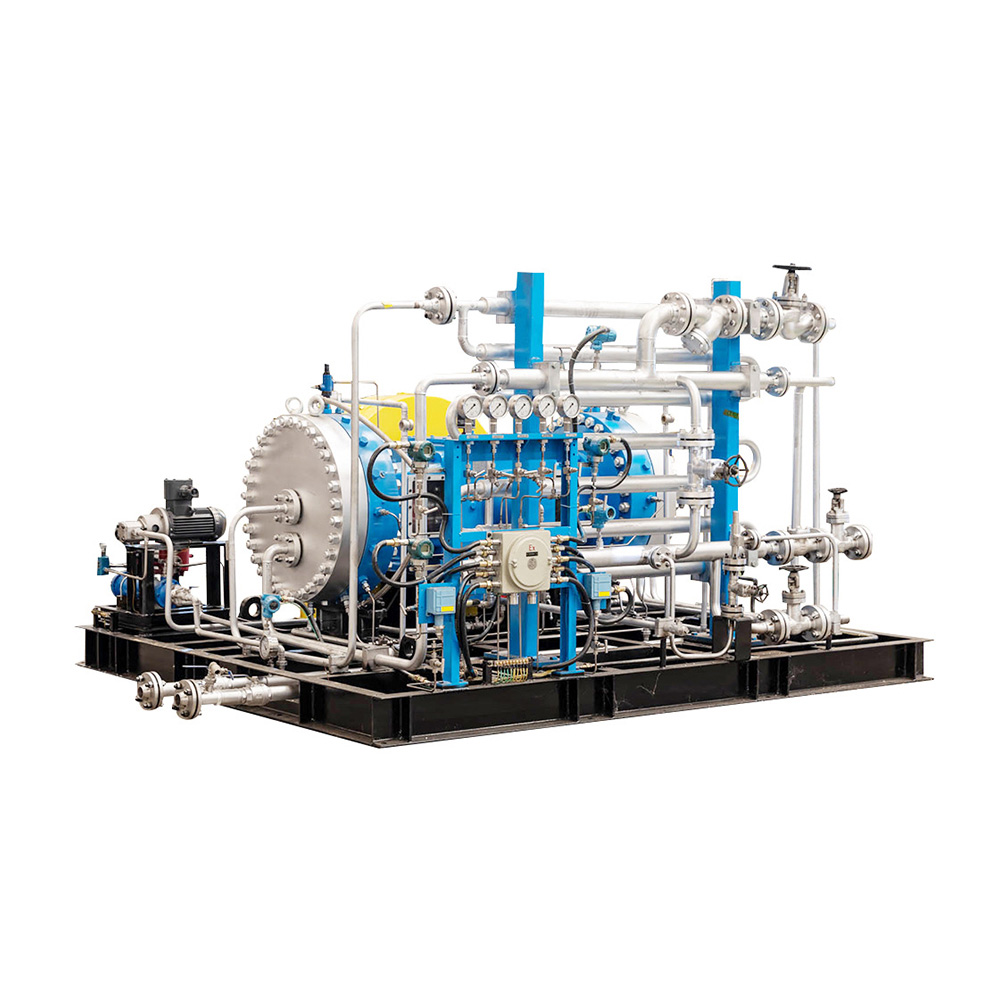

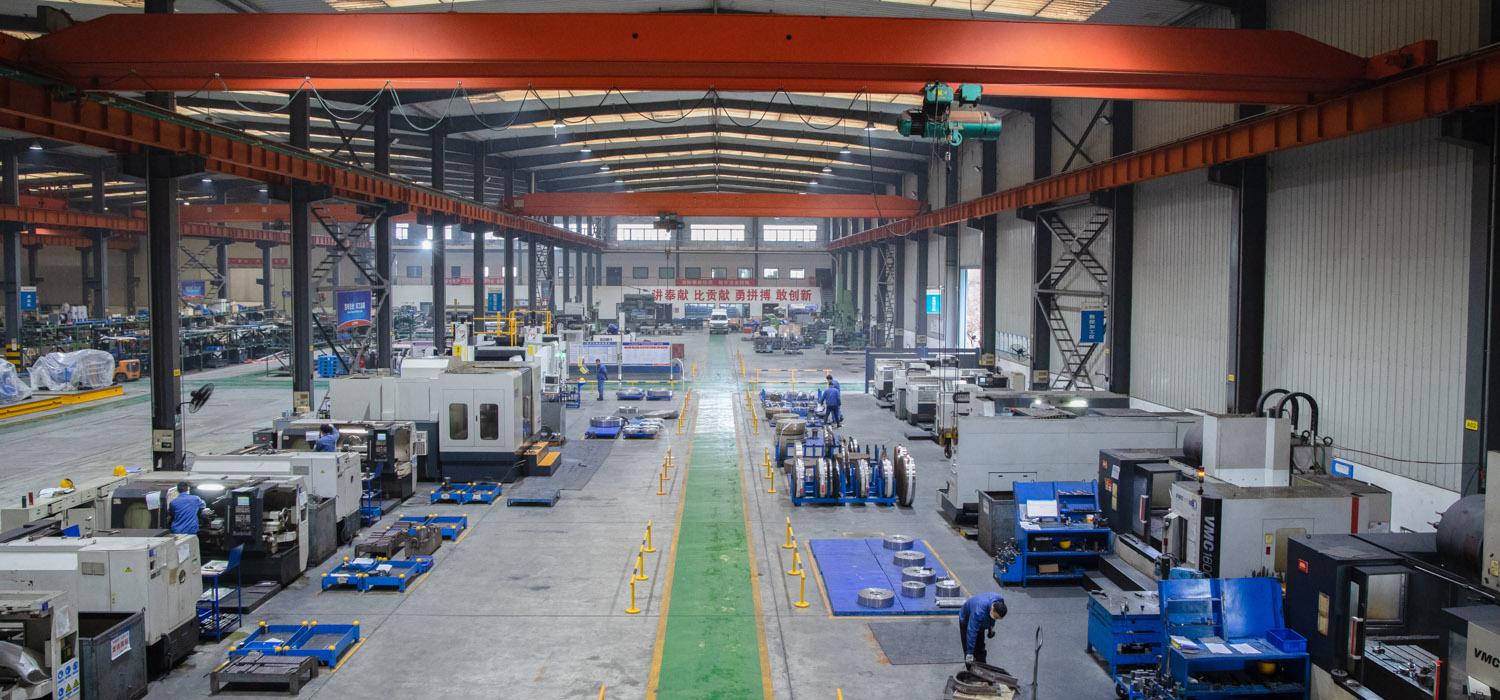

• Full In-House Manufacturing & Control: From machining to assembly, we maintain complete vertical integration. This ensures superior quality control, consistency, and the ability to tailor every aspect of the compressor.
• Custom-Engineered Solutions: We recognize that standard solutions are not always sufficient. Our engineering team specializes in customizing diaphragm compressors to meet your exact flow, pressure, gas compatibility, and certification requirements.
• Focus on Safety and Performance: Every compressor is designed with multiple safety layers and performance optimizations, ensuring safe handling of sensitive gases and operational efficiency.

Choosing the Right Technology Partner

Selecting a diaphragm compressor is an investment in safety, purity, and process integrity. It requires a partner with not just manufacturing capability but also a profound understanding of gas dynamics and application challenges.

If your operations involve high-purity, high-value, or hazardous gases that demand absolute containment and reliability, a diaphragm compressor from a trusted expert is the optimal solution.

Learn More About Our Diaphragm Compressor Solutions

For detailed technical information or to discuss how a custom-configured diaphragm compressor can enhance your specific application, please reach out to our engineering specialists.
