Diaphragm Compressor
| Suction pressure : 0.02~4MPa |
| Discharge pressure :0.2~25MPa |
| Discharge pressure :0.2~25MPa |
| Motor power : 18.5~350kw |
| Cooling method : Air or water cooling |
| Application : Widely used in well gas collection, pipeline natural gas pressurization,transportation, gas injection production,oil and gas treatment plants. |
Features：

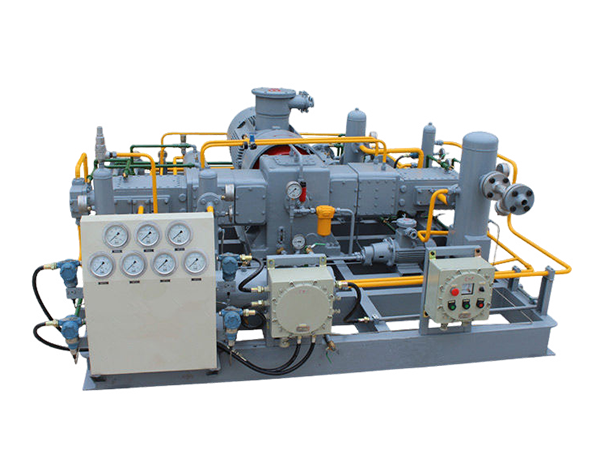

Huayan natural gas compressor has the characteristics of high volumetric efficiency, few wearing parts, low vibration. All components can be installed on a common base skid, making it easy for the transportation and installation of the compressor.
The discharge pressure can be up to 250bar, with small footprint, adjustable gas flow, long service life of wearing parts, and high level of automatic control system.
Diversified cooling methods: water cooling, air cooling, mixed cooling, etc. (customized according to the actual needs of users)
Diversified structural arrangement: fixed, mobile, soundproof shelter, etc. (customized according to the actual needs of users)
| Structural type: vertical, V, horizontal type |
| Suction suction pressure: 0~0.2MPa |
| Discharge pressure: 0.3 ~3MPa |
| Flow range: 150-5000NM3/h |
| Motor power: 22~400kw |
| Cooling method: air or water cooling |
| Application : Widely used in food and pharmaceutical industry, refrigeration industry,petrochemical industry. |
features：
As a key equipment in the carbon dioxide supercritical extraction, catalytic reaction, or food and beverage industry, Huayan carbon dioxide compressor must be kept oil-free to ensure the cleanliness of carbon dioxide.
Huayan carbon dioxide compressor has the characteristics of oil-free cylinder, stainless steel corrosion resistance, adjustable gas flow, long service life of wearing parts, small footprint, adjustable gas flow, long service life of wearing parts, and high level of automatic control system.
Diversified cooling methods: water cooling, air cooling, mixed cooling, etc. (customized according to the actual needs of users)
Diversified structural arrangement: fixed, mobile, soundproof shelter, etc. (customized according to the actual needs of users)
|
Structural Type : vertical, V, horizontal type |
|
Suction Pressure : 0 ~ 8MPa |
|
Discharge pressure : 0.1 ~25MPa |
|
Flow Range : 50-7200NM3/h |
|
Motor Power: 4 ~ 200kw |
|
Cooling Method : air or water cooling |
| Application : Compression of various single or mixed medium gases in petroleum, chemical and other processes, and chemical exhaust recycling systems. Its main function is to transport medium gas in the reaction device and provide the required pressure to the reaction device. |
Features
Huayan Mixed Gas Reciprocating Compressor is a type of compressor specifically designed for handling mixed gases. It can compress gases with different properties, such as molecular weight, composition, and pressure, with different designs in terms of model, material, electrical, and transmission parts. This versatility makes it an ideal choice for industries that handle mixed gases, such as chemical plants, refineries, and natural gas processing facilities.
| Structural type : Vertical, V, horizontal type |
| Suction pressure : 0.02~4MPa |
| Discharge pressure : 0.4~90MPa |
|
Flow range : 5-5000NM3/h |
| Motor power : 5.5~280kw |
| Cooling method : Air or water cooling |
| Application : Widely used in hydrogen production system, benzene hydrogenation, tar hydrogenation, carbon 9 hydrogenation, catalytic cracking and other processes |
Features
The Huayan hydrogen diaphragm compressor has the characteristics of good sealing performance, high exhaust pressure, and completely oil-free, which can ensure the stable operation of the hydrogen compressor, safe and leak free, and ensure the same gas purity at the inlet and outlet. Huayan hydrogen compressor has been widely used in systems such as electrolytic cell hydrogen recovery and pressurization, hydrogen filling stations, etc. When designing high-pressure hydrogen compressors, the characteristics of hydrogen should be fully considered, and the hydrogen embrittlement phenomenon under high-pressure conditions should be taken into account, so as to choose more suitable flow materials for high-pressure hydrogen to avoid potential risks.
| Structural type : vertical, V, horizontal type |
| Suction pressure : 0.05~5MPa |
| Discharge pressure : 0.3~50MPa |
| Flow range : 90-3000NM3/h |
| Motor power : 22 ~ 250kw |
| Cooling method : air or water cooling |
| Application: widely used in nitrogen pressurization at the back of nitrogen generator, nitrogen replacement of chemical plants and gas units, nitrogen filling bottles, nitrogen injection Wells and so on. |
Features
Huayan nitrogen compressor can be customized as oil and oil free according to user needs, with a wide working pressure range and a maximum exhaust pressure of 50MPa; The compressor has a wide flow design and control range, which can accurately control 0-100% flow through frequency conversion or bypass control; The control system has a high degree of automation and can achieve remote one click control interlocking. The vulnerable parts of Huayan nitrogen compressor have a long service life, with a service life of over 6000h and 8000h.
| Helium compressor |
| Main specifications |
| Structure : Z/V/L/D type |
| Stroke :170~210mm |
| Max piston force : 10-160KN |
| Max discharge pressure : 100MPa |
| Flow range : 30~2000Nm3/h |
| Motor power : 3-200kw |
| Speed :420rpm |
| Cooling method : air/water |
| Product application:： |
| Widely used in gas transportation of helium, filling of helium storage tanks, helium recovery, helium mixing, and helium sealing tests. |
Features
Helium is known as the noble gas. Due to its rarity and high market value, the Huayan helium compressor is safe, leak free, and pollution-free during operation, ensuring the cleanliness of helium; Meanwhile, due to the high adiabatic index of helium, the compression ratio is strictly controlled during the design process, avoiding a large amount of heat generated by helium during the compression process, thus ensuring that the compressor temperature is within a reasonable range. This is crucial for the stable operation of the helium compressor and the service life of vulnerable parts.
