GV series diaphragm compressor parameter table

Short Description:


  • Brand: Huayan Gas
  • Place of Origin: China·Xuzhou
  • Compressor structure: Diaphragm Compressor
  • Model: GV series
  • Volume flow: 3NM3/hour~1000NM3/hour (customized)
  • Voltage: : 380V/50Hz (customized)
  • Maximum outlet pressure: 100MPa (customized)
  • Motor power: 2.2KW~30KW (customized)
  • Noise: <80dB
  • Crankshaft speed: 350~420 rpm/min
  • Advantages: high design exhaust pressure, no pollution to compressed gas, good sealing performance, corrosion resistance of optional materials.
  • Certificate: ISO9001, CE certificate, etc.
  • Product Detail

    Product Tags

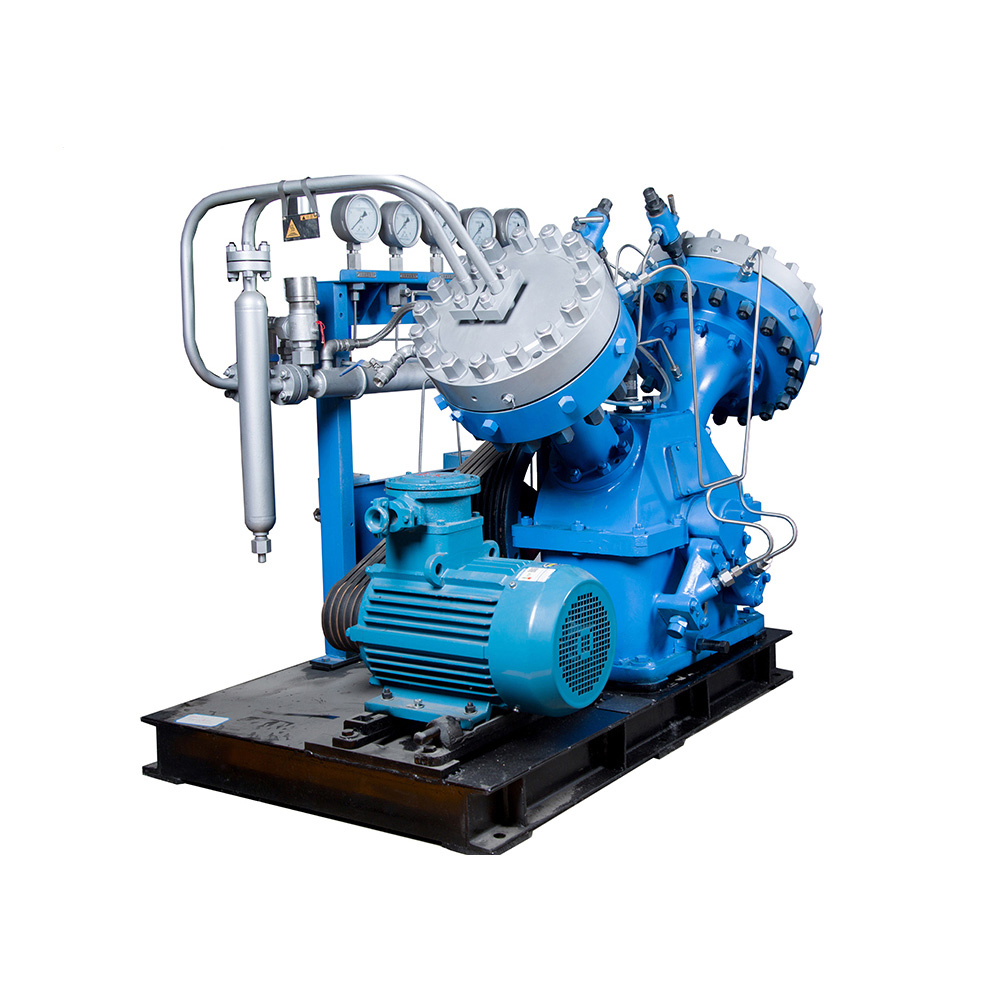

    GV SERIES DIAPHRAGM COMPRESSOR-REFERENCE PICTURE

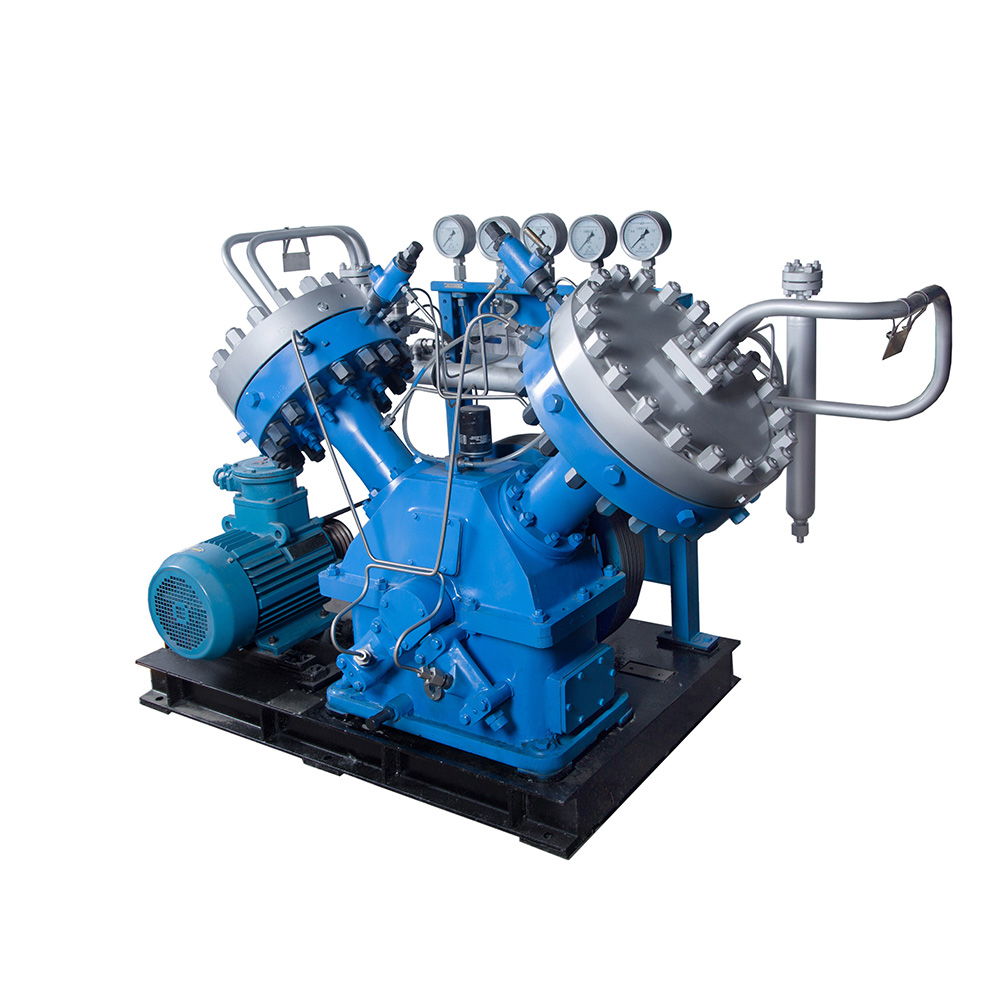

    GV SERIES DIAPHRAGM COMPRESSOR
    GV SERIES DIAPHRAGM COMPRESSOR

    PRODUCT DESCRIPTION

    The Diaphragm Compressor is a positive displacement compressor with a special structure. It is the highest level compression method in the gas compression field. This compression method has no secondary pollution and has very good protection for the compressed gas. It has a large compression ratio, has good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic and harmful, corrosive, and high-pressure gases. This compression method is usually designated internationally to compress high-purity gases, flammable and explosive gases, toxic gases, and oxygen. and many more.
    A. Classified by structure:
    Diaphragm compressors have four main types: Z, V, D, L, etc.;
    B. Classified by diaphragm material:
    Diaphragm materials of diaphragm compressors are metal diaphragm (including black metal and non-ferrous metal) and non-metal diaphragms;
    C. Classified by compressed media:
    It can compress rare and precious gases, flammable and explosive gases, high-purity gases, corrosive gases, etc.
    D. Classified by sports organization:
    Crankshaft connecting rod, crank slider, etc.;
    E. Classified by cooling method:
    Water cooling, oil cooling, rear air cooling, natural cooling, etc.;
    F. Classified by lubrication method:
    Pressure lubrication, splash lubrication, external forced lubrication, etc.

    GV diaphragm compressor
    GV diaphragm compressor

    GZ SERIES DIAPHRAGM COMPRESSOR-PARAMETER TABLE

    GV series diaphragm compressor parameter table
    No. Model Cooling water(L/h) Flow(Nm³/h) Inlet pressure
    (MPa)
    Outlet
    pressure (MPa)
    Dimensions L×W×H(mm) Weight
    (Kg)
    Motor Power (kW)
    Piston stroke is 70mm
    1 GV-8/8-160 500 8 0.8 16 1310×686×980 650 3
    2 GV-10/6-160 800 10 0.6~0.7 16 1200×600×1100 500 4
    3 GV-10/8-160 800 10 0.8 16 1330×740×1080 650 4
    4 GV-10/4-160 800 10 0.4 16 1330×740×1000 650 4
    5 GV-7/8-350 800 7 0.8 16 1300×610×920 800 4
    6 GV-15/5-160 800 15 0.5 16 1330×740×920 700 5.5
    7 GV-5/7-350 1000 5 0.7 35 1400×845×1100 800 5.5
    Piston stroke is 95mm
    8 GV-5/200 400 5 Atmospheric pressure 20 1500×780×1080 750 3
    9 GV-5/1-200 300 5 0.1 20 1520×800×1050 750 3
    10 GV-11/1-25 600 11 0.1 2.5 1500×780×1080 850 4
    11 GV-12/2-150 1000 12 0.2 15 1600×776×1080 750 5.5
    12 GV-20/W-160 800 20 1 16 1500×800×1200 800 5.5
    13 GV-30/5-30 800 30 0.5 1 1588×768×1185 980 5.5
    14 GV-10/1-40 400 10 0.1 4 1475×580×1000 1000 5.5
    15 GV-20/4 600 20 Atmospheric pressure 0.4 1500×900×1100 1000 5.5
    16 GV-70/5-10 500 70 0.5 1 1595×795×1220 1000 5.5
    17 GV-8/5-210 400 8 0.5 21 1600×880×1160 1020 5.5
    18 GV-20/1-25 400 20 0.1 2.5 1450×840×1120 1050 5.5
    19 GV-20/10 - 350 1200 20 1 35 1500×750×1140 800 7.5
    20 GV-15/5-350 1050 15 0.5 35 1600×835×1200 1000 7.5
    21 GV-20/8-250 1200 20 0.8 25 1520×825×1126 1000 7.5
    22 GV-12/5-320 1200 12 0.5 32 1600×835×1130 1000 7.5
    23 GV-15/8-350 1100 15 0.8 35 1520×820×1160 1020 7.5
    24 GV-18/10-350 1200 18 1 35 1255×800×1480 1200 7.5
    25 GV-35/4-25 300 35 0.4 2.5 1500×810×1100 1000 7.5
    26 GV-50/6.5-36 2250 50 0.65 3.6 1450×850×1120 1048 7.5
    27 GV-20/5-200 1200 20 0.5 20 1500×780×1080 800 7.5
    Piston stroke is 130mm
    28 GV-20/3-200 1200 20 0.3 20 2030×1125×1430 1800 15
    29 GV-25/5 -160 1200 25 0.5 16 1930×1150×1450 1800 15
    30 GV-40/0.5-10 1200 40 0.05 1.00 2035×1070×1730 1800 15
    31 GV-20/200 1200 20 Atmospheric pressure 20 1850×1160×1400 1850 15
    32 GV-90/30-200 1200 90 3 20 2030×970×1700 1800 22
    33 GV-30/8-350 2400 30 0.8 35 2030×1125×1430 1800 22
    34 GV-30/8-350 2400 30 0.8 35 2040×1125×1430 1800 22
    35 GV-60/10-160 3000 60 1 16 1800×1100×1400 1800 22
    36 GV-60/5-160 3000 60 0.5 16 2030×1125×1430 1800 22
    37 GV-40/10-400 2000 40 1 40 2000×1150×1500 1800 22
    38 GV-60/10-350 2400 60 1 35 2070×1125×1430 1800 22
    39 GV-30/5-350 2000 30 0.5 35 1900×1130×1450 2000 22
    40 GV-40/2.5-160 2000 40 0.25 16 1900×1130×1450 2000 22
    41 GV-150/3.5-30 2000 150 0.35 3 1900×1130×1450 2000 22
    42 GV-70/2.5-80 2000 70 0.25 8 1880×1060×1400 2120 22
    43 GV-80/2.5-80 2000 80 0.25 8 1880×1060×1400 2120 22
    44 GV-120/3.5-12 3600 120 0.35 1.2 2030×1045×1700 2200 22
    45 GV-100/7-25 1200 100 0.7 2.5 2030×1045×1700 1900 30
    46 GV-50/5-210 2000 50 0.5 21 1900×1130×1450 2000 30
    47 GV-80/5-200 2000 80 0.5 20 1900×1130×1450 2000 22
    48 GV-40/5-350 2000 40 0.5 35 1900×1130×1450 2000 30

    SUBMIT INQUIRY PARAMETERS

    If you want us to provide you with detailed technical design and quotation, please provide the following technical parameters, and we will reply to your email or phone within 24 hours.

    1.Flow: _____ Nm3 / hour

    2.Inlet pressure: _____Bar(MPa)

    3.Outlet pressure: _____Bar(MPa)

    4. Gas medium: _____

    We can customize a variety of compressors. Please send the above parameters to email: Mail@huayanmail.com
