GD series diaphragm compressor parameter table

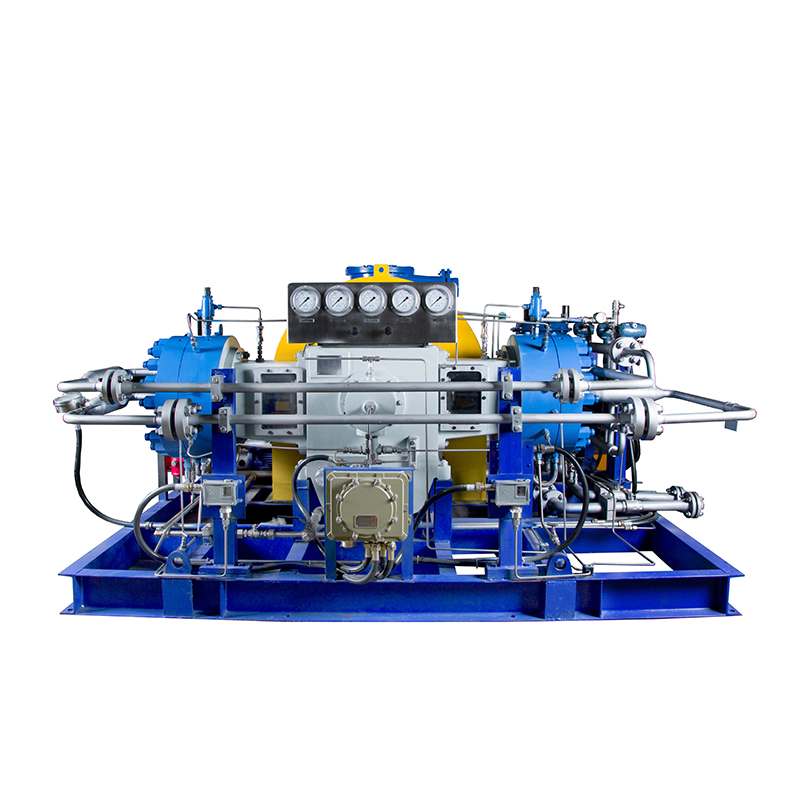

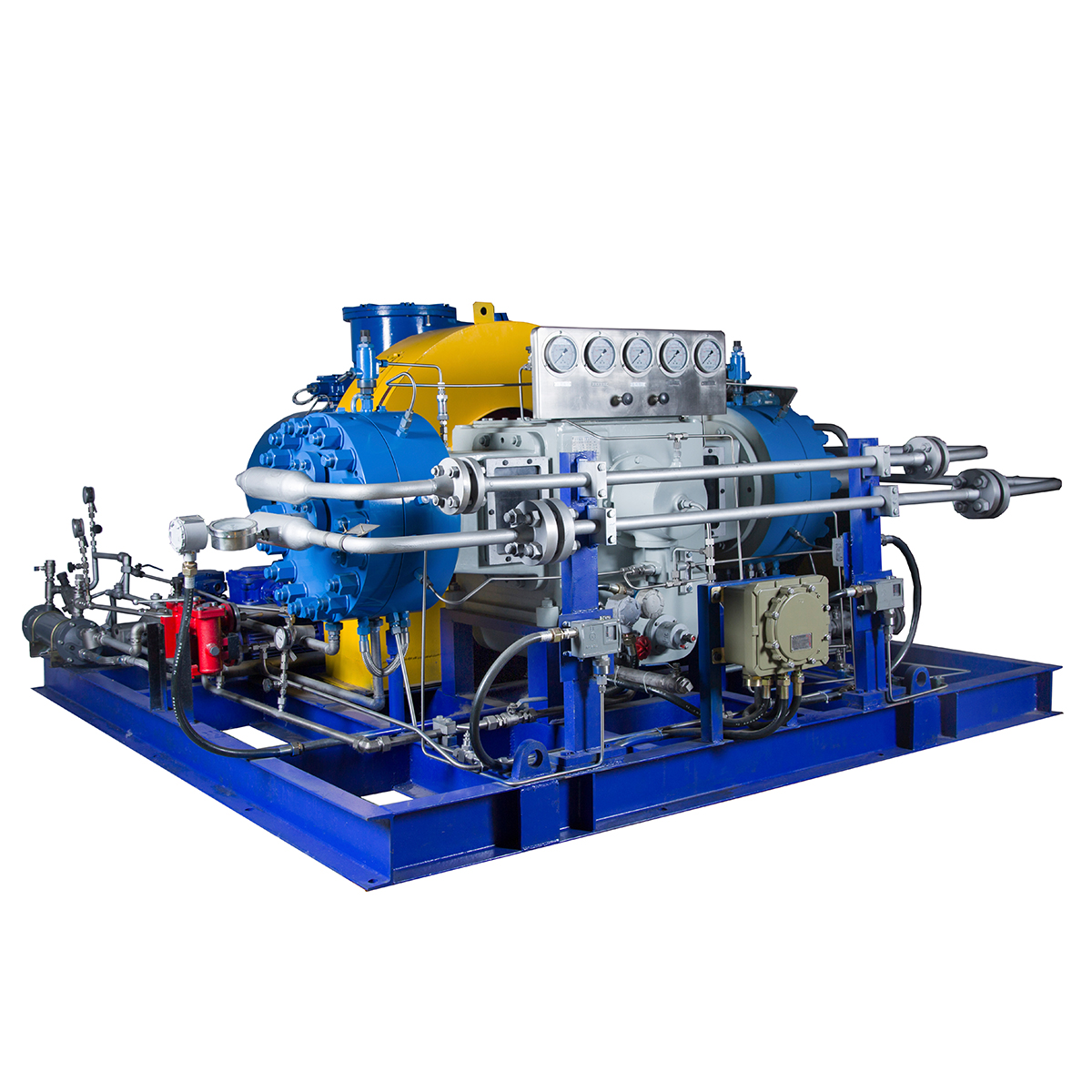

GL SERIES DIAPHRAGM COMPRESSOR-REFERENCE PICTURE
The Diaphragm Compressor is a positive displacement compressor with a special structure. It is the highest level compression method in the gas compression field. This compression method has no secondary pollution and has very good protection for the compressed gas. It has a large compression ratio, has good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic and harmful, corrosive, and high-pressure gases. This compression method is usually designated internationally to compress high-purity gases, flammable and explosive gases, toxic gases, and oxygen. and many more.
A. Classified by structure:
Diaphragm compressors have four main types: Z, V, D, L, etc.;
B. Classified by diaphragm material:
Diaphragm materials of diaphragm compressors are metal diaphragm (including black metal and non-ferrous metal) and non-metal diaphragms;
C. Classified by compressed media:
It can compress rare and precious gases, flammable and explosive gases, high-purity gases, corrosive gases, etc.
D. Classified by sports organization:
Crankshaft connecting rod, crank slider, etc.;
E. Classified by cooling method:
Water cooling, oil cooling, rear air cooling, natural cooling, etc.;
F. Classified by lubrication method:
Pressure lubrication, splash lubrication, external forced lubrication, etc.
GD SERIES DIAPHRAGM COMPRESSOR-PARAMETER TABLE
| GD series diaphragm compressor parameter table | ||||||||
| Model | Cooling water (L/h) |
Flow (Nm³/h) |
Inlet pressure (MPa) | Outlet pressure (MPa) |
Dimensions L×W×H(mm) | Weight (Kg) |
Motor Power (kW) | |
| 1 | GD-120/4-80 | 3000 | 120 | 0.4 | 8.0 | 3000×1600×1400 | 4000 | 30 |
| 2 | GD-130/0.98-11 | 3000 | 130 | 0.098 | 1.1 | 3000×1800×1600 | 4000 | 30 |
| 3 | GD-150/2-20 | 3000 | 150 | 0.2 | 2.0 | 3000×1800×1600 | 4000 | 37 |
| 4 | GD-100/0.1-5 | 4000 | 100 | 0.01 | 0.5 | 2800×1500×1500 | 3000 | 18.5 |
| 5 | GD-100/5.5-200 | 5000 | 100 | 0.55 | 20 | 3200×2000×1600 | 4500 | 45 |
| 6 | GD-80/0.12-4 | 5000 | 80 | 0.012 | 0.4 | 2800×1600× 1500 | 3800 | 15 |
| 7 | GD-60/0.3-6 | 4000 | 60 | 0.03 | 0.6 | 2800×1600×1500 | 4000 | 15 |
| 8 | GD-70/0.1-8 | 3800 | 70 | 0.01 | 0.8 | 3000×1600×1250 | 5000 | 18.5 |
| 9 | GD-40/0.02-160 | 5000 | 40 | 0.02 | 16 | 2800×1460×1530 | 3000 | 22 |
| 10 | GD-100/0.5-6 | 2000 | 100 | 0.05 | 0.6 | 3000×2000×1560 | 6000 | 18.5 |
| 11 | GD-36/1-150 | 4000 | 36 | 0.1 | 15 | 3000×1500×1500 | 4000 | 45 |
| 12 | GD-35/0.7-300 | 4000 | 35 | 0.07 | 30 | 3000×1600×1500 | 4000 | 22 |
| 13 | GD-500/15-35 | 4500 | 500 | 1.5 | 3.5 | 3000×2000×1700 | 4000 | 45 |
| 14 | GD-150/15-210 | 4500 | 150 | 1.5 | 21 | 3200×1700×1600 | 4000 | 45 |
| 15 | GD-120/8-220 | 4500 | 120 | 0.8 | 22 | 3200×1700×1600 | 3800 | 45 |
| 16 | GD-100/9 | 4500 | 100 | 0.0 | 0.9 | 3200×1700×1800 | 4500 | 22 |
| 17 | GD-100/1.5-150 | 4500 | 100 | 0.15 | 15 | 3200×1700×1800 | 4500 | 45 |
| 18 | GD-40/30 | 4500 | 40 | 0.0 | 3.0 | 3200×1700×1800 | 4000 | 18.5 |
| 19 | GD-200/10-15-90 | 4500 | 200 | 1.0-1.5 | 9.0 | 3200×1800×1600 | 4000 | 37 |
| 20 | GD-100/7-150 | 4000 | 100 | 0.7 | 15 | 3000×1800× 1600 | 4000 | 55 |
| 21 | GD-25/-0.1-47 | 4000 | 25 | -0.01 | 4.7 | 3000×1800×1600 | 4000 | 15 |
| 22 | GD-45/0.5-100 | 4000 | 45 | 0.05 | 10 | 3000×1800×1600 | 4000 | 30 |
| 23 | GD-30/0.1-160 | 4000 | 30 | 0.01 | 16 | 3000×1800×1600 | 4000 | 18.5 |
| 24 | GD-120/2.5-70 | 4000 | 120 | 0.25 | 7.0 | 3000×1800×1600 | 4000 | 37 |
| 25 | GD-135/10-210 | 4000 | 135 | 1.0 | 21 | 3000×1600×1400 | 4000 | 37 |
| 26 | GD-60/40-350 | 4500 | 60 | 4.0 | 35 | 3000×1800×1600 | 4000 | 30 |
| 27 | GD-95/10-350 | 4000 | 95 | 1.0 | 35 | 3000×1600×1400 | 4000 | 37 |
| 28 | GD-220/11-90 | 4000 | 220 | 1.1 | 9.0 | 3000×1800×1600 | 4000 | 37 |
| 29 | GD-300/15-220 | 4500 | 300 | 1.5 | 22 | 3600×2200×1700 | 5000 | 75 |
| 30 | GD-300/13-210 | 5000 | 300 | 1.3 | 21 | 3500×2300×1800 | 6000 | 75 |
| 31 | GD-120/12-350 | 6500 | 120 | 1.2 | 35 | 3500×2300×1600 | 8500 | 45 |
| 32 | GD-165/10-250 | 8000 | 165 | 1.0 | 25 | 3500×2300×1500 | 8500 | 55 |
| 33 | GD-120/8-350 | 6500 | 120 | 0.8 | 35 | 3500×2300×1600 | 8500 | 45 |
| 34 | GD-800/210-320 | 8000 | 800 | 21 | 32 | 3500×2300×1500 | 8500 | 37 |
| 35 | GD-420/8-39 | 6500 | 420 | 0.8 | 3.9 | 3600×2500×1700 | 6000 | 75 |
| 36 | GD-370/20-200 | 4500 | 370 | 2.0 | 20 | 3600×2200×1700 | 5000 | 75 |
| 37 | GD-350/18-210 | 4500 | 350 | 1.8 | 21 | 3600×2200×1700 | 5000 | 75 |
| 38 | GD-300/8-120 | 4500 | 300 | 0.8 | 12 | 3600×2200×1700 | 5000 | 75 |
| 39 | GD-308/4 | 10000 | 308 | 0 | 0.4 | 4200×3200×2600 | 10000 | 55 |
| 40 | GD-180/8.5 | 5000 | 180 | 0 | 0.85 | 4200×3200×2600 | 10000 | 55 |
Our Service for diaphragm compressor :
1.Service time : 24*7 Hours
2.Customized Service
3.Perfect pre-sale,sale,after-sales service
4.FAT
5.Onsite commissioning Service
6.18 months warranty period
SUBMIT INQUIRY PARAMETERS
If you want us to provide you with detailed technical design and quotation, please provide the following technical parameters, and we will reply to your email or phone within 24 hours.
Customized is accepted , Pls provide the following information to us :
1.Flow rate: _______Nm3/h
2.Gas Media : ______ Hydrogen or Natural Gas or Oxygen or other gas ?
3.Inlet pressure: ___bar(g)
4.Inlet temperature:_____℃
5.Outlet pressure：____bar(g)
6.Outlet temperature:____℃
7.Installation location: _____indoor or outdoor?
8.Location ambient temperature: ____℃
9.Power supply: _V/ _Hz/ _3Ph?
10.Cooling method for gas: air cooling or water cooing?
Wide variety and types of diaphragm compressor can be manufactured by our company such as hydrogen compressor , nitrogen compressor , helium compressor , natural gas compressor and etc .
Outlet pressure at 50bar 200 bar, 350 bar (5000 psi), 450 bar, 500 bar, 700 bar (10,000 psi), 900 bar (13,000 psi) and other pressure can be customized .
