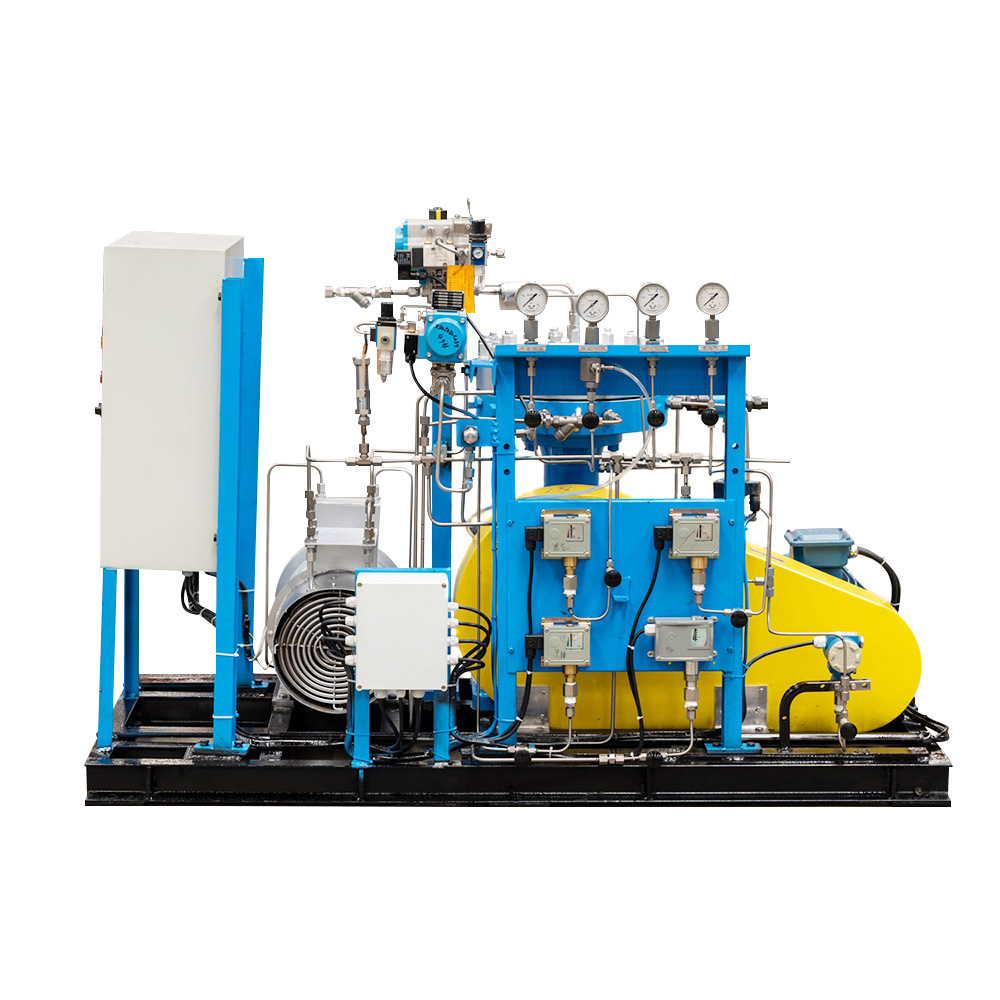

GZ Type Heavy duty Hydrogen Gas Booster Diaphragm Compressor manufacrurer

Short Description:


  • Brand: Huayan
  • Place of Origin: China·Xuzhou
  • Compressor structure: Diaphragm Compressor
  • Model: GZ series
  • Volume flow: 3NM3/hour~1000NM3/hour (customized)
  • Voltage: : 380V/50Hz (customized)
  • Maximum outlet pressure: 100MPa (customized)
  • Motor power: 2.2KW~30KW (customized)
  • Noise: < 80dB
  • Crankshaft speed: 350~420 rpm/min
  • Advantages: high design exhaust pressure, no pollution to compressed gas, good sealing performance, corrosion resistance of optional materials.
  • Certificate: ISO9001, CE certificate, etc.
  • Product Detail

    Product Tags

    PRODUCT DESCRIPTION

      The diaphragm compressor is a volume compressor of a special structure. It is the highest -level compression method in the field of gas compression. This compression method does not have secondary pollution. It has very good protection for the compressed gas. Good sealing, compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare precious, flammable and explosive, toxic and harmful, corrosive, and high pressure gas.
      Diaphragm compressor is a variant of the classic reciprocating compressor with backup and piston rings and rod seal. The compression of gas occurs by means of a flexible membrane, instead of an intake element. The back and forth moving membrane is driven by a rod and a crankshaft mechanism. Only the membrane and the compressor box come in touch with pumped gas. For this reason this construction is the best suited for pumping toxic and explosive gases. The membrane has to be reliable enough to take the strain of pumped gas. It must also have adequate chemical properties and sufficient temperature resistance.
    The diaphragm compressor is mainly composed of motors, bases, crankshaft boxes, crankshaft connecting rods, cylinder components, oil and gas pipelines, electrical control systems, and some accessories.

    The Diaphragm Compressor is a positive displacement compressor with a special structure. It is the highest level compression method in the gas compression field. This compression method has no secondary pollution and has very good protection for the compressed gas. It has a large compression ratio, has good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic and harmful, corrosive, and high-pressure gases. This compression method is usually designated internationally to compress high-purity gases, flammable and explosive gases, toxic gases, and oxygen. and many more.
    A. Classified by structure:
    Diaphragm compressors have four main types: Z, V, D, L, etc.;
    B. Classified by diaphragm material:
    Diaphragm materials of diaphragm compressors are metal diaphragm (including black metal and non-ferrous metal) and non-metal diaphragms;
    C. Classified by compressed media:
    It can compress rare and precious gases, flammable and explosive gases, high-purity gases, corrosive gases, etc.
    D. Classified by sports organization:
    Crankshaft connecting rod, crank slider, etc.;
    E. Classified by cooling method:
    Water cooling, oil cooling, rear air cooling, natural cooling, etc.;
    F. Classified by lubrication method:
    Pressure lubrication, splash lubrication, external forced lubrication, etc.

    图1

    The compressor is consists of a three pieces of diaphragms. The diaphragm is clamped along the surrounding area by the hydraulic oil side and the process gas side of the process. The diaphragm is driven by the hydraulic driver in the film head to achieve the compression and transportation of the gas. The main body of the diaphragm compressor consists of two systems: the hydraulic oil system and the gas compression system, and the metal membrane separates these two systems.

    图2



    Basically, the structure of the diaphragm compressor is divided into two parts: the hydraulic framework and the pneumatic force framework. During the compression process, there are two steps: the suction stroke and the delivery stroke.

    diaphragm gas compressor



    IMG_20180525_172821
    IMG_20180507_103413

    GZ SERIES DIAPHRAGM COMPRESSOR-PARAMETER TABLE

    GZ series diaphragm compressor parameter table
      Model Cooling
    water (L/h)
    Flow
    (Nm³/h)
    Inlet
    pressure
    (MPa)
    Outlet
    pressure (MPa)
    Dimensions L×W×H(mm) Weight (kg) Motor
    Power (kW)
    1 GZ-2/3 1000 2.0 0.0 0.3 1200×700×1100 0 2.2
    2 GZ-5/0.5-10 200 5.0 0.05 1.0 1400×740×1240 650 2.2
    3 GZ-5/13-200 400 5.0 1.3 20 1500×760×1200 750 4.0
    4 GZ-15/3-19 500 15 0.3 1.9 1400×740×1330 750 4.0
    5 GZ-30/5-10 500 30 0.5 1.0 1400×740×1330 700 3.0
    6 GZ-50/9.5-25 600 50 0.95 2.5 1500×760×1200 750 5.5
    7 GZ-20/5-25 600 20 0.5 2.5 1400×760×1600 650 4.0
    8 GZ-20/5-30 1000 20 0.5 3.0 1400×760×1600 650 5.5
    9 GZ-12/0.5-8 400 12 0.05 0.8 1500×760×1200 750 4.0
    10 GZ—5/0.5-8 200 5.0 0.05 0.8 1400×740×1240 650 2.2
    11 GZ-14/39-45 500 14 3.9 4.5 1000×460×1100 700 2.2
    12 GZ-60/30-40 2100 60 3.0 4.0 1400×800×1300 750 3.0
    13 GZ-80/59-65 500 80 5.9 6.5 1200×780×1200 750 7.5
    14 GZ-30/7-30 1000 30 0.7 3.0 1400×760×1600 650 5.5
    15 GZ-10/0.5-10 200 10 0.05 1.0 1400×800×1150 500 4.0
    16 GZ-5/8 200 5.0 0.0 0.8 1400×800×1150 500 3.0
    17 GZ-15/10-100 600 15 1.0 10 1400×850×1320 1000 5.5
    18 GZ-20/8-40 1000 20 0.8 4.0 1400×850×1320 1000 4.0
    19 GZ-20/32-160 1000 20 3.2 16 1400×850×1320 1000 5.5
    20 GZ-30/7.5-25 1000 30 0.75 2.5 1400×850×1320 1000 7.5
    21 GZ-5/0.1-7 1000 5.0 0.01 0.7 1200×750×1000 600 2.2
    22 GZ-8/5 1000 8.0 0.0 0.5 1750×850×1250 1000 3.0
    23 GZ-11/0.36-6 400 11 0.036 0.6 1500×760×1200 750 3.0
    24 GZ-3/0.2 1000 3.0 0.0 0.02 1400×800×1300 1000 2.2
    25 GZ-80/20-35 1500 80 2.0 3.5 1500×800×1300 900 5.5
    26 GZ-15/30-200 1000 15 3.0 20 1400×1000×1200 800 4.0
    27 GZ-12/4-35 1000 12 0.4 3.5 1500×1000×1500 800 5.5
    28 GZ-10/0.5-7 400 10 0.05 0.7 1500×760×1200 750 3.0
    29 GZ-7/0.1-6 1000 7.0 0.01 0.6 1200×900×1200 800 3.0
    30 GZ-20/4-20 1000 20 0.4 2.0 1400×850×1320 750 2.2
    31 GZF-42/120-350 1200 42 12 35 900×630×834 420 5.5
    32 GZ-7/0.1-6 1500 7 0.01 0.6 1200×900×1200 800 3.0
    33 GZ-120/80-85 1500 100 8.0 8.5 1200×900×1200 800 4.0
    34 GZ-5/6-10 1000 5.0 0.6 1.0 1200×700×1100 700 2.2
    35 GZ-7/50-350 1000 7.0 5.0 35 1150×700×1100 450 3.0
    36 GZ-20/7-30 1000 20 0.7 3.0 1400×760×1100 750 4.0
    37 GZ-62/40-56 1500 62 4.0 5.6 1200×700×1100 450 3.0
    38 GZ-15/10-12 1500 15 1.0 1.2 1200×700×1100 500 3.0
    39 GZ-14/6-20 1000 14 0.6 2.0 1200×700×1100 500 2.2
    40 GZ-350/120-450 1000 350 5-20 450 2350×1850×1100 7000 37
    41 GZ-936/8-8.3 2000 936 0.8 0.83 2100×1500×1700 2000 15

    Deliver Natural Gas compressor to Malaysia3

    Deliver Natural Gas compressor to Malaysia2

    微信图片_20221020092911



    SUBMIT INQUIRY PARAMETERS

    If you want us to provide you with detailed technical design and quotation, please provide the following technical parameters, and we will reply to your email or phone within 24 hours.

    Customized is accepted , Pls provide the following information to us :
    1.Flow rate: _______Nm3/h
    2.Gas Media : ______ Hydrogen or Natural Gas or Oxygen or other gas ?
    3.Inlet pressure: ___bar(g)
    4.Inlet temperature:_____℃
    5.Outlet pressure:____bar(g)
    6.Outlet temperature:____℃
    7.Installation location: _____indoor or outdoor?
    8.Location ambient temperature: ____℃
    9.Power supply: _V/ _Hz/ _3Ph?
    10.Cooling method for gas: air cooling or water cooing?
    Wide variety and types of diaphragm compressor can be manufactured by our company such as hydrogen compressor , nitrogen compressor , helium compressor , natural gas compressor and etc .
    Outlet pressure at 50bar 200 bar, 350 bar (5000 psi), 450 bar, 500 bar, 700 bar (10,000 psi), 900 bar (13,000 psi) and other pressure can be customized .
