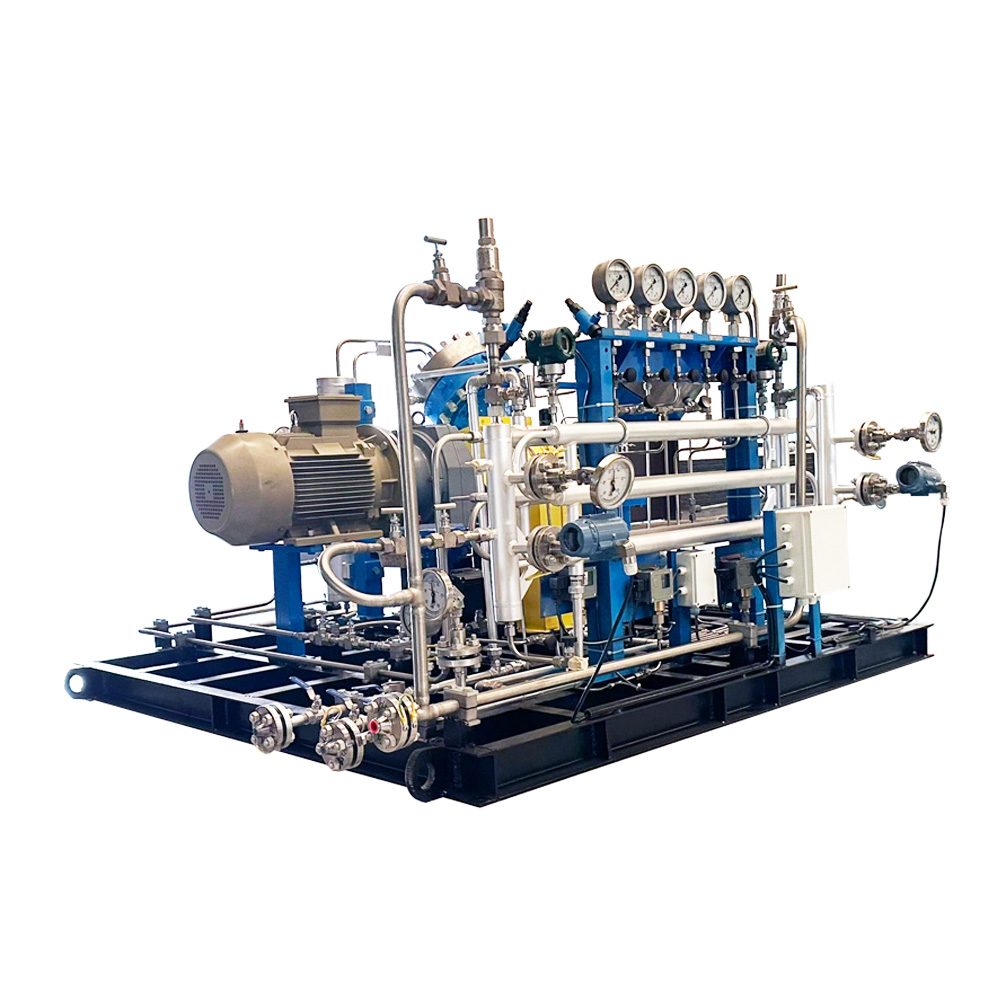

Gv Type Diaphragm Compressor Oxygen Compressor Booster Nitrogen Compressor Helium Compressor Booster High Pressure Compressor

Short Description:


  • Brand: Huayan Gas
  • Compressor structure: Diaphragm Compressor
  • Model: Gv Type
  • Volume flow: 3NM3/hour~1000NM3/hour (customized)
  • Voltage: 380V/50Hz (customized)
  • Drive Mode: Electric
  • Performance: <80dB
  • Lubrication Style: Oil-less
  • Transport Package: Fumigation Wooden Box
  • Product Detail

    Product Tags



    The Hydeogen diaphragm compressor is a volume compressor of a special structure. It is the highest -level compression method in the field of gas compression. This compression method does not have secondary pollution. It has very good protection for the compressed gas. Good sealing, compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare precious, flammable and explosive, toxic and harmful, corrosive, and high pressure gas.
    diaphragm compressor is a variant of the classic reciprocating compressor with backup and piston rings and rod seal. The compression of gas occurs by means of a flexible membrane, instead of an intake element. The back and forth moving membrane is driven by a rod and a crankshaft mechanism. Only the membrane and the compressor box come in touch with pumped gas. For this reason this construction is the best suited for pumping toxic and explosive gases. The membrane has to be reliable enough to take the strain of pumped gas. It must also have adequate chemical properties and sufficient temperature resistance.
    The diaphragm compressor is mainly composed of motors, bases, crankshaft boxes, crankshaft connecting rods, cylinder components, oil and gas pipelines, electrical control systems, and some accessories.

    Advantages of Diaphragm compressor:
    1.   Oil-free compression due to the hermetic separation between gas and oil chamber.
    2.   Abrasion-free compression due to static seals in the gas stream
    3.   Automatic shutdown in case of a diaphragm failure prevents damage
    4.   High Compression Ratios-Discharge pressure up to 1000bar.
    5.   Contamination Free Compression
    6.   Corrosion Resistance
    7.   High Reliability

    GV series diaphragm compressor :
    Structure type : V type
    Piston Travel : 70-130mm
    Max Piston force : 10KN-30KN
    Max discharge Pressure : 50MPa
    Flow Rate Range :2-100Nm3/h
    Motor Power : 2.2KW-30KW

    图1

    The compressor is consists of a three pieces of diaphragms. The diaphragm is clamped along the surrounding area by the hydraulic oil side and the process gas side of the process. The diaphragm is driven by the hydraulic driver in the film head to achieve the compression and transportation of the gas. The main body of the diaphragm compressor consists of two systems: the hydraulic oil system and the gas compression system, and the metal membrane separates these two systems.

    图2

    Basically, the structure of the diaphragm compressor is divided into two parts: the hydraulic framework and the pneumatic force framework. During the compression process, there are two steps: the suction stroke and the delivery stroke.

     图3

    Specification

    Number Model Cooling water consumption(t/h) Exhaust volume
    Nm3/h)
    Intake pressure
    (MPa)
    Exhaust pressure
    (MPa)
    Overall dimension
    LxWxH(mm)
    Weight
    (t)
    Motor power
    (KW)
    The piston stroke of the following products is 70mm
    1 GV-8/8-160 0.5 8 0.8 16 1310x686x980 0.65 3
    2 GV-10/6-160 0.8 10 0.6~0.7 16 1200x600x1100 0.5 4
    3 GV-10/8-160 0.8 10 0.8 16 1330x740x 1080 0.65 4
    4 GV-10/4-160 0.8 10 0.4 16 1330x740x1000 0.65 4
    5 GV-7/8-350 0.8 7 0.8 16 1300x610x920 0.8 4
    6 GV-15/5-160 0.8 15 0.5 16 1330x740x920 0.7 5.5
    7 GV-5/7-350 1 5 0.7 35 1400x845x1100 0.8 5.5
    The piston stroke of the following products is 95mm
    8 GV-5/200 0.4 5 Normal pressure 20 1500x780x1080 0.75 3
    9 GV-5/1-200 0.3 5 0.1 20 1520 x 800 x 1050 0.75 3
    10 GV-11/1-25 0.6 11 0.1 2.5 1500x780x1080 0.85 4
    11 GV-12/2-150 1 12 0.2 15 1600x776x1080 0.75 5.5
    12 GV-20/W-160 0.8 20 1 16 1500x800x 1200 0.8 5.5
    13 GV-30/5-30 0.8 30 0.5 1 1588x 768 x 1185 0.98 5.5
    14 GV-10/1-40 0.4 10 0.1 4 1475 x 580x1000 1 5.5
    15 GV-20/4 0.6 20 Normal pressure 0.4 1500x900x1100 1 5.5
    16 GV-70/5-10 1-5 70 0.5 1 1595 x 795 x 1220 1 5.5
    17 GV-8/5-210 0.4 8 0.5 21 1600 x 880x1160 1.02 5.5
    18 GV-20/1-25 0.4 20 0.1 2.5 1450 x 840x1120 1.05 5.5
    19 GV-20/10 - 350 1.2 20 1 35 1500x750x1140 0.8 7.5
    20 GV-15/5-350 1-05 15 0.5 35 1600 x 835x 1200 1 7.5
    21 GV-20/8-250 1.2 20 0.8 25 1520x825x1126 1 7.5
    22 GV-12/5-320 1.2 12 0.5 32 1600 x 835x 1130 1 7.5
    23 GV-15/8-350 1.1 15 0.8 35 1520x820x1160 1.02 7.5
    24 GV-18/10-350 1.2 18 1 35 1255 x 800 x 1480 1.2 7.5
    25 GV-35/4-25 0.3 35 0.4 2.5 1500x810x1100 1 7.5
    26 GV-50/6.5-36 2.25 50 0.65 3.6 1450x850x1120 1.048 7.5
    27 GV-20/5-200 1-2 20 0.5 20 1500x780x1080 0.8 7.5
    The piston stroke of the following products is 130mm
    28 GV-20/3-200 1.2 20 0.3 20 2030 x 1125 x 1430 1.8 15
    29 GV-25/5 -160 1.2 25 0.5 16 1930 x 1150 x 1450 1.8 15
    30 GV-40/0.5-10 1.2 40 0.05 1.00 2035 x 1070 x 1730 1.8 15
    31 GV-20/200 1.2 20 Normal pressure 20 1850 x 1160 x 1400 1.85 15
    32 GV-90/30-200 1.2 90 3 20 2030 x 970 x 1700 1-8 22
    33 GV-30/8-350 2.4 30 0.8 35 2030 x 1125 x 1430 1.8 22
    34 GV-30/8-350 2.4 30 0.8 35 2040 x 1125 x 1430 1.8 22
    35 GV-60/10-160 3 60 1 16 1800 x 1100 x 1400 1.8 22
    36 GV-60/5-160 3 60 0.5 16 2030 x 1125 x 1430 1.8 22
    37 GV-40/10-400 2 40 1 40 2000 x 1150 x 1500 1.8 22
    38 GV-60/10-350 2.4 60 1 35 2070 x 1125 x 1430 1.8 22
    39 GV-30/5-350 2 30 0.5 35 1900 x 1130 x 1450 2 22
    40 GV-40/2.5-160 2 40 0.25 16 1900 x 1130 x 1450 2 22
    41 GV-150/3.5-30 2 150 0.35 3 1900 x 1130 x 1450 2 22
    42 GV-70/2.5-80 2 70 0.25 8 1880 x 1060 x 1400 2.12 22
    43 GV-80/2.5-80 2 80 0.25 8 1880 x 1060 x 1400 2.12 22
    44 GV-120/3.5-12 3.6 120 0.35 1.2 2030 x 1045 x 1700 2.2 22
    45 GV-100/7-25 1.2 100 0.7 2.5 2030 x 1045 x 1700 1.9 30
    46 GV-50/5-210 2 50 0.5 21 1900 x 1130 x 1450 2 30
    47 GV-80/5-200 2 80 0.5 20 1900 x 1130 x 1450 2 22
    48 GV-40/5-350 2 40 0.5 35 1900 x 1130 x 1450 2 30



    Product display

    GV

    GV9

    IMG_20180525_172802

    IMG_20181128_111924(1)

    证书

    包装





    How to get a quote ? Customized is accepted .

    Customized is accepted , Pls provide the following information to us

    1.Flow rate: _______Nm3/h

    2.Gas Media : ______ Hydrogen or Natural Gas or Oxygen or other gas ?

    3.Inlet pressure: ___bar(g)

    4.Inlet temperature:_____℃

    5.Outlet pressure:____bar(g)

    6.Outlet temperature:____℃

    7.Installation location: _____indoor or outdoor?

    8.Location ambient temperature: ____℃

    9.Power supply: _V/ _Hz/ _3Ph?

    10.Cooling method for gas: air cooling or water cooing?

    Wide variety and types of diaphragm compressor can be manufactured by our company such as hydrogen compressor , nitrogen compressor , helium compressor , natural gas compressor and etc .

    Outlet pressure at 50bar 200 bar, 350 bar (5000 psi), 450 bar, 500 bar, 700 bar (10,000 psi), 900 bar (13,000 psi) and other pressure can be customized .
